Introduction:
This syrup filling and capping machine adopts piston pump to do filling,by adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision and the speed can adjust according to your requirements
Application:

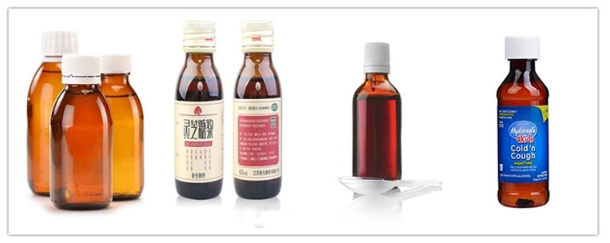

The syrup filling and capping machine is mainly used in the food, pharmacy and chemical industry and suitable for filling different kinds of round bottles and bottle in irregular shape with metal or plastic caps and filling for the liquid like the syrup, oral liquid, honey etc.
Feature:
1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2.Including feeder turntable,effective cost/space saving
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5.Siemens Touch screen/PLC(optional)
6. No bottle no filling/plugging/capping
Parameter
Bottle | 10-500ml |
Productive Capacity | 10-50pcs/min 4filling nozzles |
Filling Tolerance | 0-2% |
Qualified Stoppering | ≥99% |
Qualified cap putting | ≥99% |
Qualified capping | ≥99% |
Power Supply | 380V ,50HZ |
Power | 1.5KW |
Net Weight | 600KG |
Dimension | 2500(L)×1000(W)×1700(H)mm |
